WAVLINK

Modified on Thu, 19 Sep at 2:53 PM

Overview of the premium fibre router that we may have supplied, including IP and default Wi-Fi passwords.

Model: WN538A8, capable of up to 1 Gbps on fibre optic lines.




WAN port: Located bottom-left of the 4-port router, this should be connected to the Openreach ONT LAN port (on the underneath) with the supplied cable in the box.


Connect WAVLINK WAN to Openreach ONT "LAN"



  • Local IP address: 192.168.10.1
  • Remote access: (HTTP port 8080)
  • Wi-Fi SSID (name): WAVLINK | Wi-Fi key (password): SecretPass#123
  • Wi-Fi SSID (name): Guest | Wi-Fi key (password): vipguest
    • Guest Wi-Fi users will not be able to access any of your devices on your LAN such as printers, computers, media devices (gaming, TV, speakers)
  • LAN ports: Connect wired devices (or a switch) to any of the 3 LAN ports

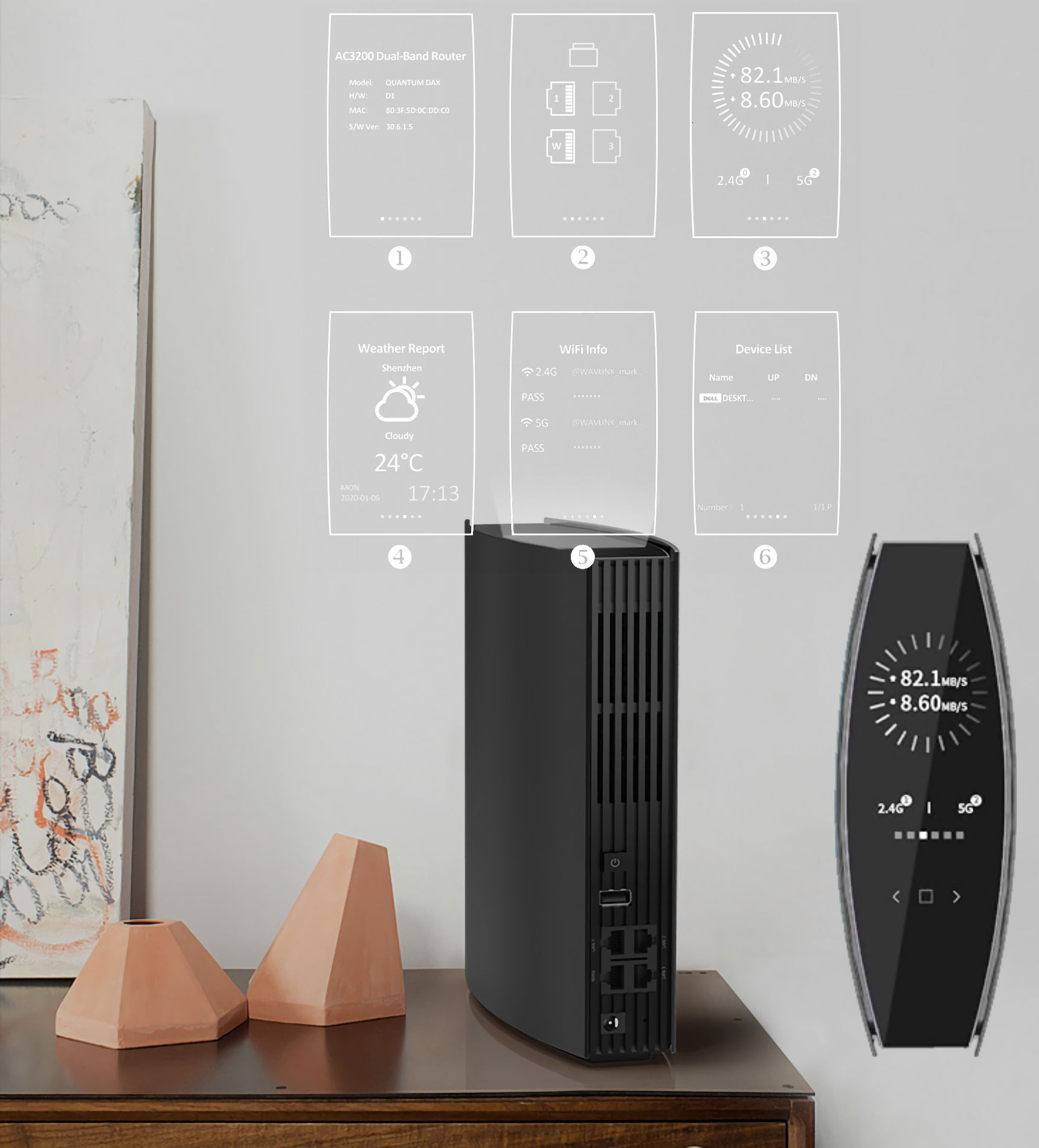

  • LCD display:

    Touch-screen controls: ◁  ▢  ▷  (Left / Home / Right; cycles through 6 info screens)

    • 1: Info about model and MAC address
    • 2: Status of wired Ethernet ports (connected/disconnected)
    • 3: Current throughput speed (actual usage)
    • 4: Weather report for your location (Example weather format for a city name: Southend-on-Sea,GB)
    • 5: Wi-Fi info (passwords)
    • 6: List of connected devices and current speed usage


Please let us know if you would like us to remotely modify settings such as Wi-Fi name and/or password, or the LAN IP address.

Full user guide attached to this article.

[End of article]
