GWN7062E/ET routers - initial setup

Overview: In order to get your router online and auto-configured you may first need to complete the setup wizard and enter your unique PPPoE broadband username/password.

More info: https://documentation.grandstream.com/knowledge-base/gwn7062e-quick-installation-guide

What you will need:

• GWN7062E router (or ET version, with built-in VoIP telephone service)
• Broadband PPPoE username
• Broadband PPPoE password
• Working Openreach fibre (PON light lit)

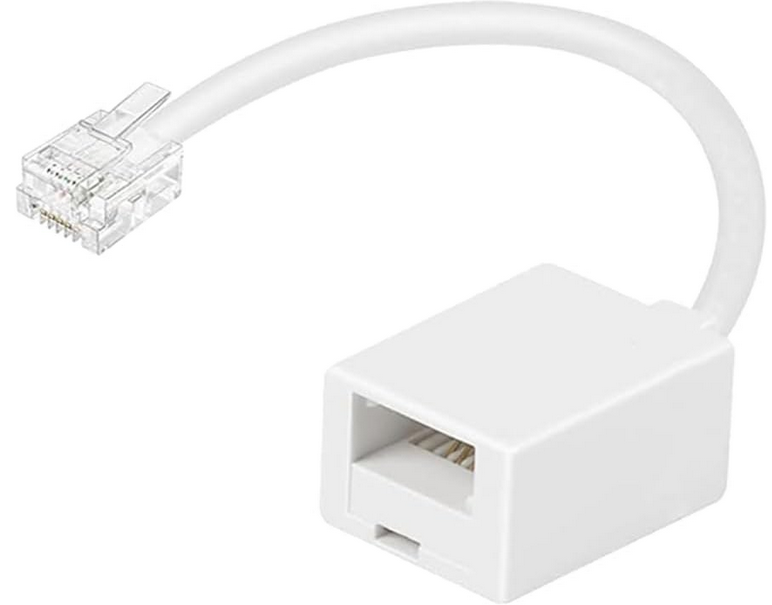

• An Ethernet cabled (to connect Openreach ONT to your router)
• A mobile phone or computer (with Wi-Fi or Ethernet port)

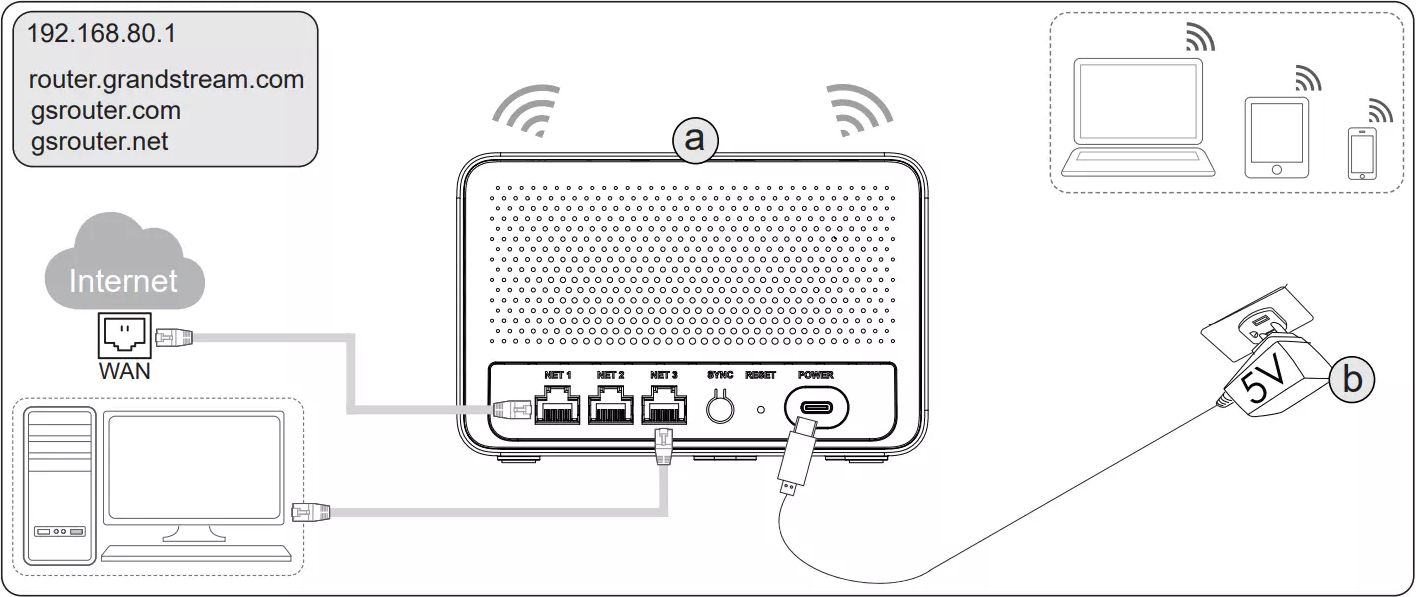

Connect cables

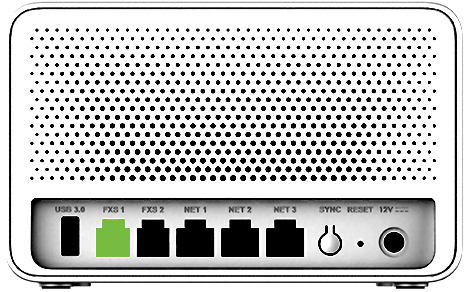

Connect NET1 to your Openreach ONT. Connect your computer to NET3, unless your only have wireless devices...

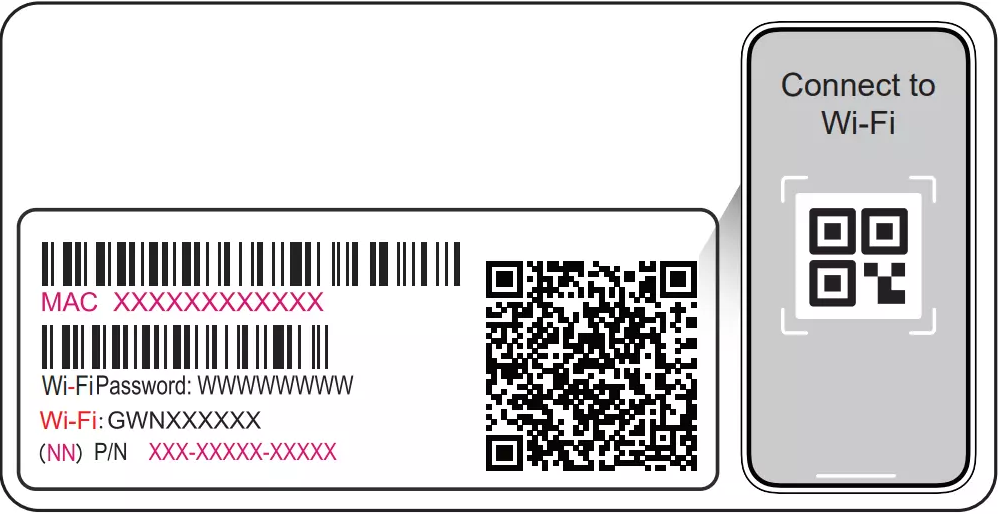

...alternatively connect a wireless device using the QR code or Wi-Fi password printed on the label:

Option 1: Configure the router using your computer or tablet (can also use phone)

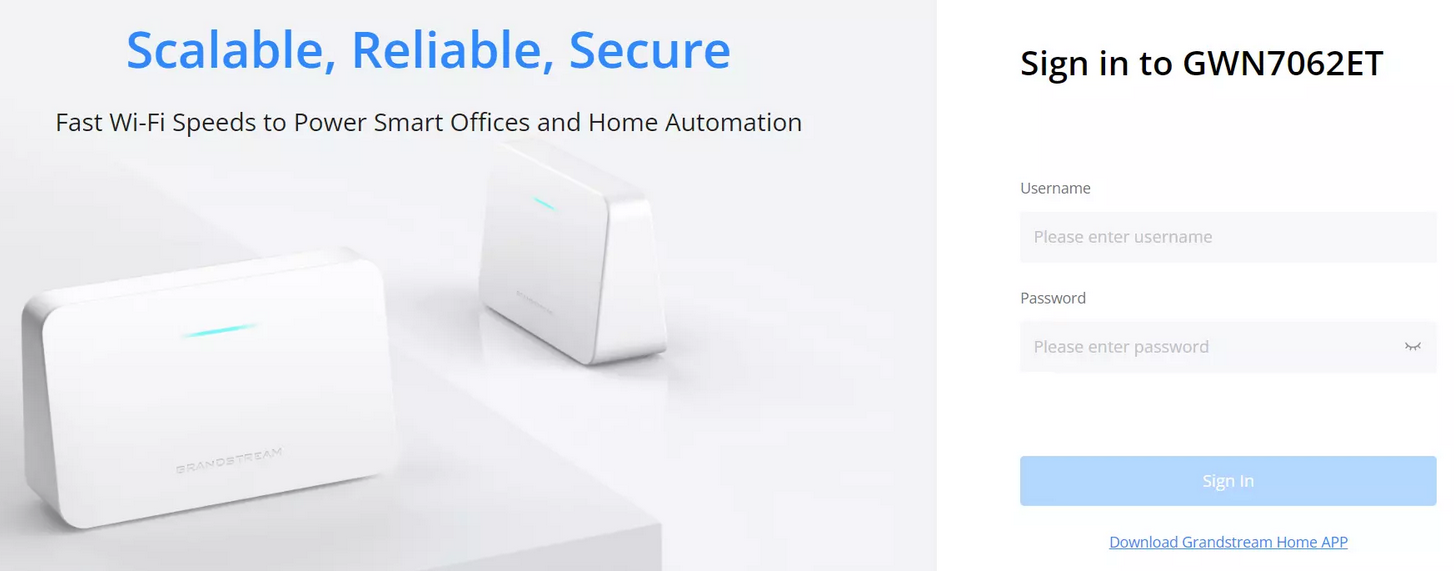

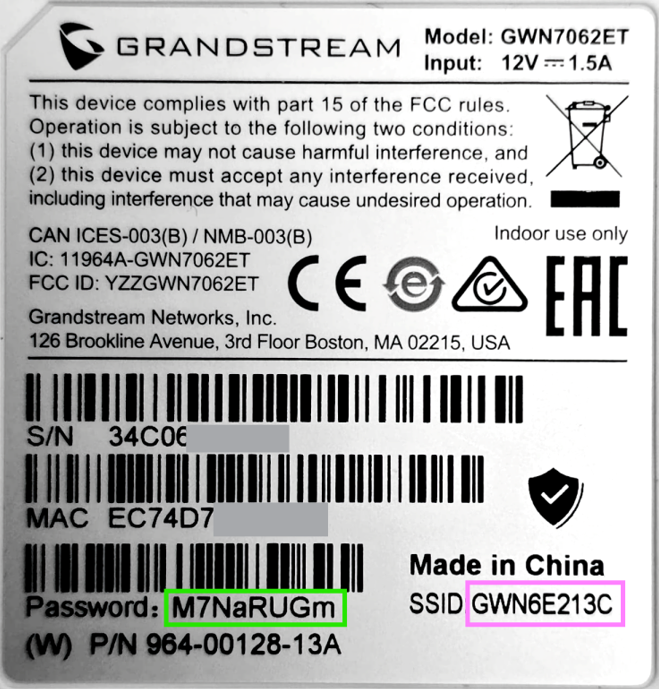

Go to https://192.168.80.1 in a web browser and log in with username "admin" and password printed on label:

Option 2: Use the Apple or Android phone app to configure your router

Apple iPhone store: https://apps.apple.com/ai/app/grandstream-home/id6744808954

Google Play store (for Samsung and other brands): https://play.google.com/store/apps/details?id=com.grandstream.net.master&hl=en_GB

Once signed into the app (register 1st time), click "+" to add a device and scan the code on the router label. Follow instructions here: https://documentation.grandstream.com/knowledge-base/grandstream-home-router-user-guide/

You will want to run the router setup wizard ("Quick setup") to edit the WAN broadband PPPoE username and password.

Complete quick setup

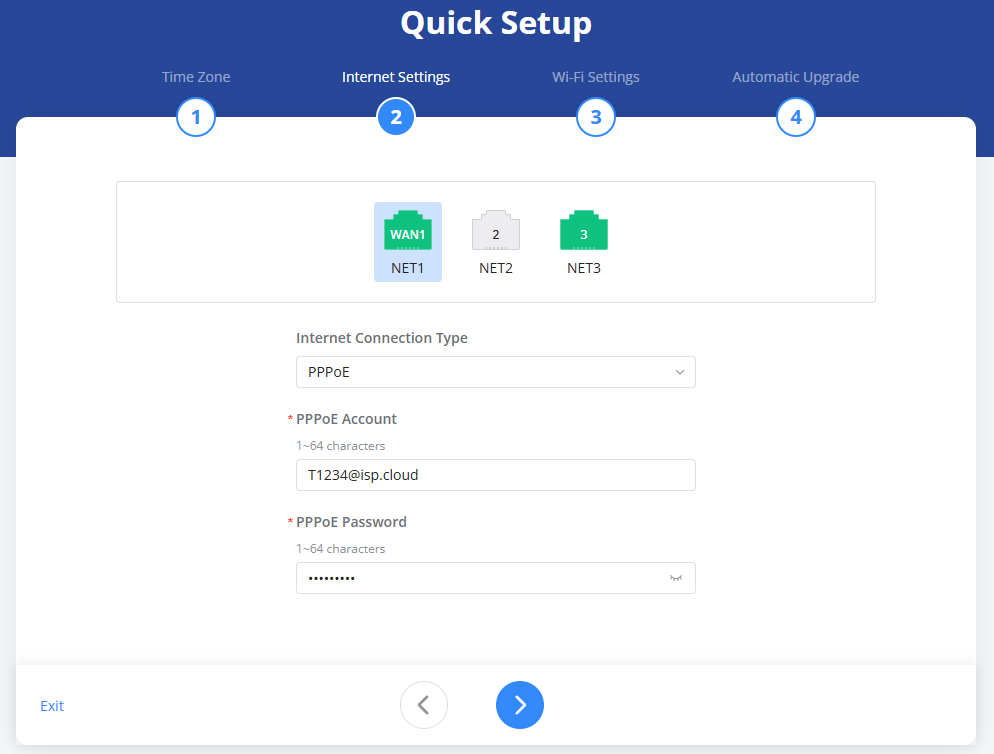

Launch quick setup to configure your router:

During step 2, Copy & Paste (or type) the PPPoE username and password unique to your account; be careful to check for unwanted leading or trailing spaces. Complete all steps.

Once online all other configuration can take place in the cloud; ask us for an account if you wish to modify or monitor using the cloud service.
