Overview: Useful information about the GRP desk phones, including how to connect to Wi-Fi (on Wi-Fi models)

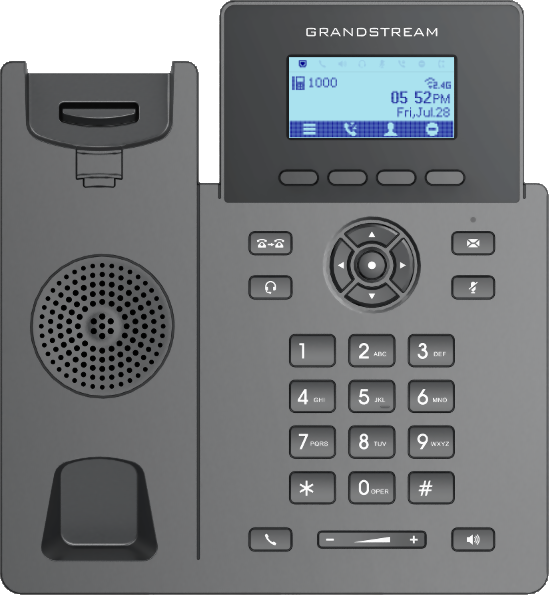

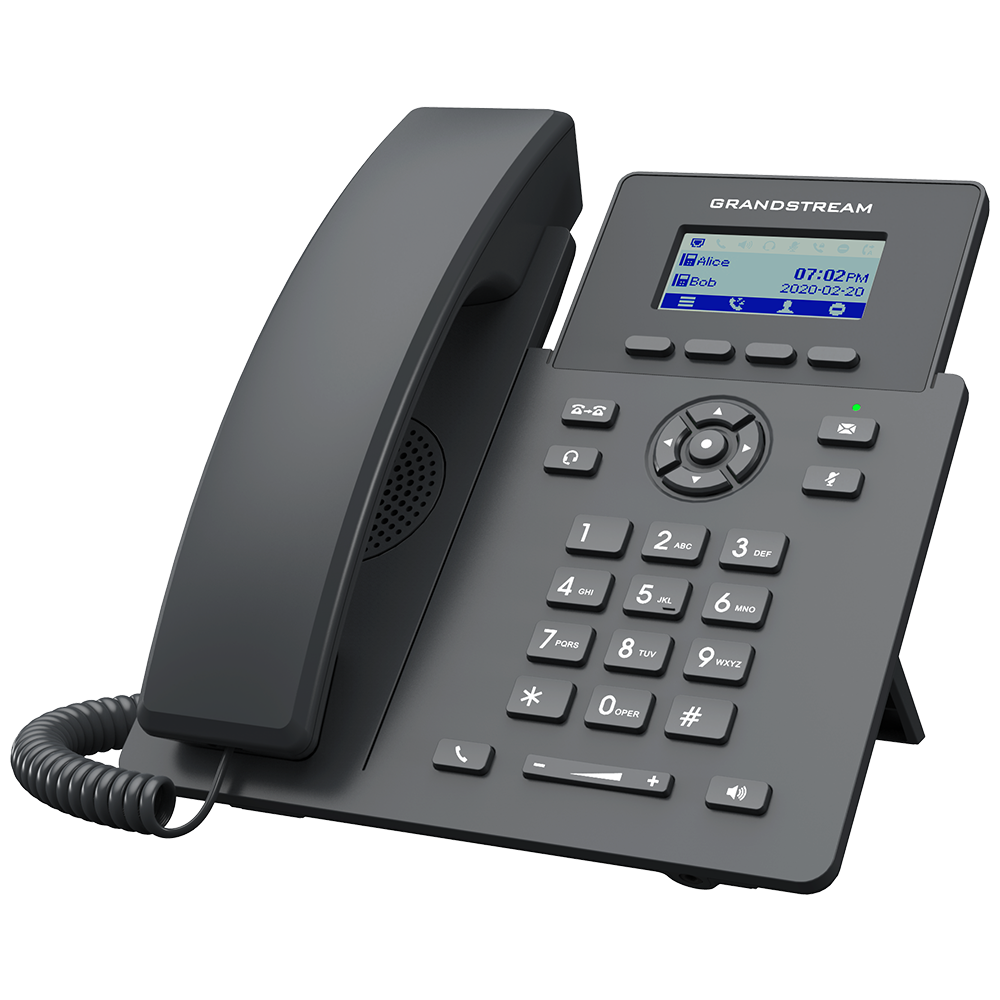

GRP2601 models

User guides and details at GRP260x Series - Documentation Center

This is an Enterprise-grade device, suitable for most desk workers and includes essential features:

• Pure PoE version (model GRP2601P)
• Base stand, or wall mountable
• RJ9 headset jack (allowing EHS with top-quality Plantronics, Jabra & Sennheiser headsets)

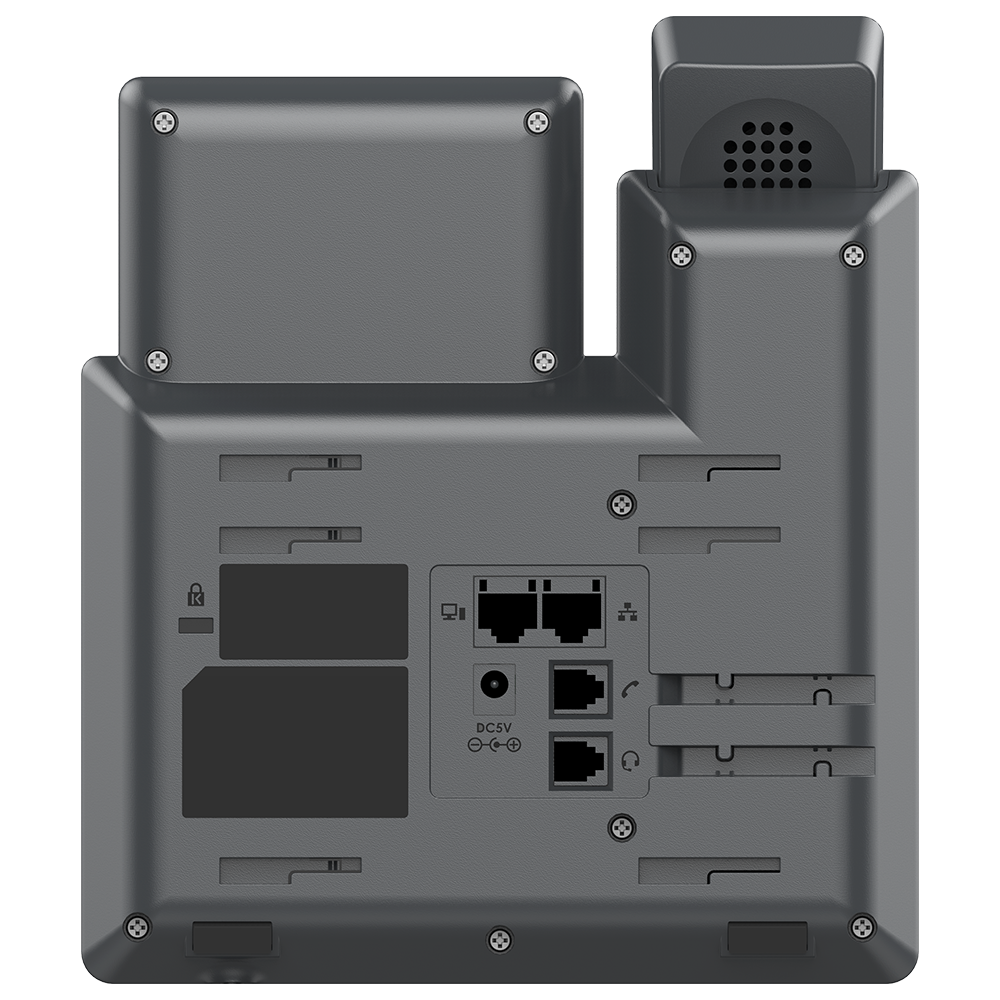

• Wi-Fi 6ax (model GRP2601W); also includes regular RJ45 Ethernet port (not PoE)
  • Includes PSU
  • Phone Wi-Fi 6 uses 2.4GHz range, so for best experience ensure all devices are Wi-Fi 6 capable
• 5-way conference calling
• 2 SIP accounts (lines)
• Fully integrates with with enterprise PBX features such as:
  • Greeting menus, music-on-hold, call transfer, voicemail, call recording, and so on
  • HD audio with AI noise-reduction and loud speaker

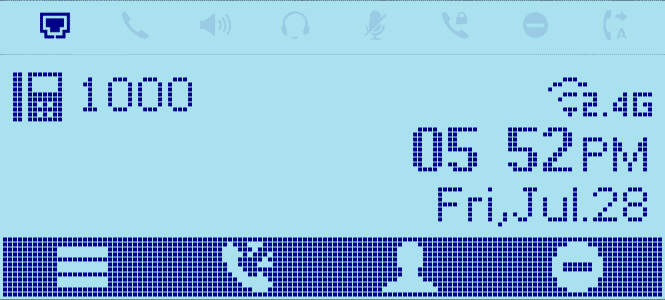

  • 2.4’’ LCD display

How to connect to Wi-Fi

Admin tip: these phones come out-of-the-box with the Wi-Fi SSID "wp_master" and passkey "p!987@dmin" - if you create this SSID on your router then the phones will automatically connect to the internet, and pull their correct config from GDMS! (This tip works for all other Wi-Fi models including the WP836). This method negates the need for manually connecting to Wi-Fi, however we list the manual steps below for situations where you cannot control the Wi-Fi.

Manually connect to Wi-Fi using the keypad

Press the ok key (inside the circle of navigation keys) and navigate to access the menu
	...choose Settings

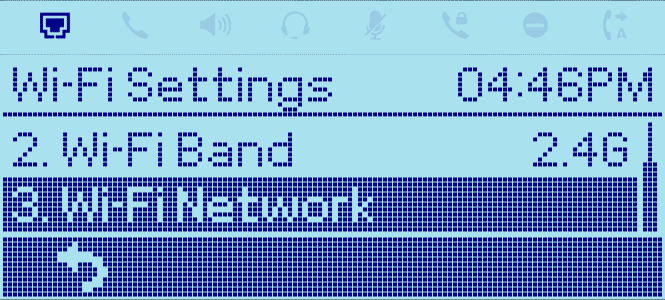

...Wi-Fi Settings...
	...Wi-Fi Network...

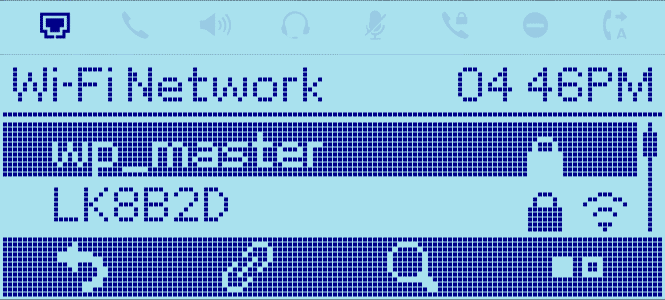

...select your Wi-Fi SSID name. Enter the password using the numeric keys which have A-Z printed on them; for example, tap the "2" key repeatedly and it will cycle through "ABC" (upper-case), "abc" (lower-case), then the number "2". You can use the lower 3 keys ( * 0 # ) to access special characters.

Remote config and support

We can configure all settings remotely, and provide remote support; just ask .
