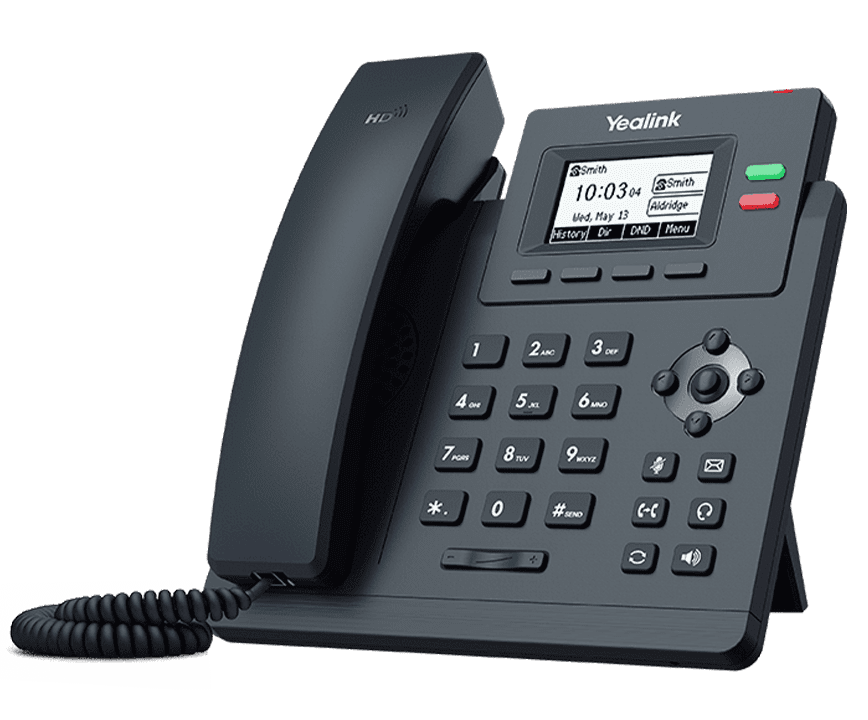

Yealink T31G: Online config options

Modified on Thu, 4 Jul at 10:42 AM

Overview: The Yealink T31G supports VDM (Virtual Device Management), and here are some features on what can be changed directly in the cloud without needing to be onsite with the device.

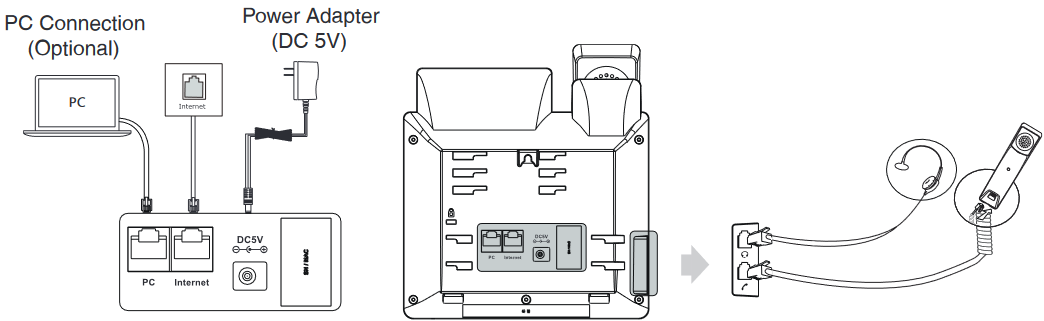

Powered by PoE (with spare 1 Gbps Ethernet port for PC or other device), or powered by 5V adapter; 1.5m Ethernet cable included, PSU can be ordered.

1x RJ9 standard handset port, and 1 spare RJ9 port for headset.

2.3” 132x64-pixel graphical LCD with back-light

Desk stand, or wall-mountable

Conference calling; Conference (or single) speakerphone


Quick Start guidehttps://support.yealink.com/en/portal/docDetail?documentCode=88745bf59c5dd275

User guide: https://support.yealink.com/en/portal/knowledge/show?id=64819af96a27da76bd06cd33


The following features can be edited in the cloud (VDM):

Button
Function
Notes
Right-hand key: Line 1 (LED)Use line 1 / BLFDefault: Line 1.
Right-hand key: Line 2 (LED)
Use line 2 / BLF
Can be: Line, Speed dial, or BLF (Busy Lamp Field), or None. Default: None.
Shared Call Appearance: Make calls (or receive) as another user.
Lower function key 1HistoryCall history, click to dial
Lower function key 2
Phonebook
Lower function key 3DNDToggle status Do-Not-Disturb on/off
Lower function key 4
MenuAccess menu and additional "soft keys" (on-screen keys)
Menu: Soft-keys 5 to 10Speed dial or FunctionCan be: Speed dial, or Function (series of actions or key stokes), or None. Default: None.
Functions: Block line ID, Conference Bridge, Night Key, Park, Pickup, Pull, Retrieve, Transfer to Voice mail, voicemail, Custom Function
Menu: General settingsAdditional settingsEnable/disable: BLF, ACD (Auto Call Distribution), MCN (Missed Call Notification)


The following additional buttons are for use only on the handset:

ButtonFunctionNotes
Volume +/-
Mute on/off
Voicemail messages
Transfer
HeadsetUse headset, or handset
Redial
Loud speaker/Conference speaker
0-9 Keypad Dial# key: manually Send (connect call)
OK, up/down, left/rightNavigationNavigate menu
Menu: ConfConference callAdd another call, or caller who is waiting (tap "Send", the # key); select Split to remove caller.

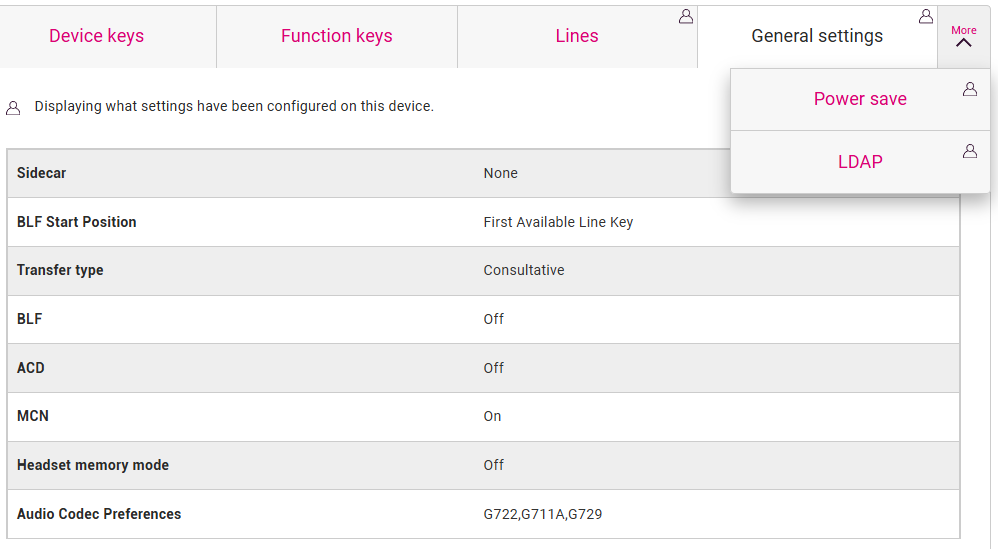

Example screen-shot of cloud configuration options:
